Mainboard Swap & InfoUpdated 2 months ago

The mainboard in the Sente is the central component that runs many of the devices.

Note that the digital marquee mainboard looks very similar, but has fewer components / ports.

When a mainboard has power, it will show a red light in the middle of the board.

When the mainboard receives an HDMI signal, it will turn on the monitor, the back LEDs, and the logo LED.

See below for help identifying the different ports on the mainboard, and a video that shows you how to replace the mainboard in the Sente.

Sente Mainboard v1 Vs Sente Mainboard v2

Digital Marquee Mainboard Vs Sente Mainboard

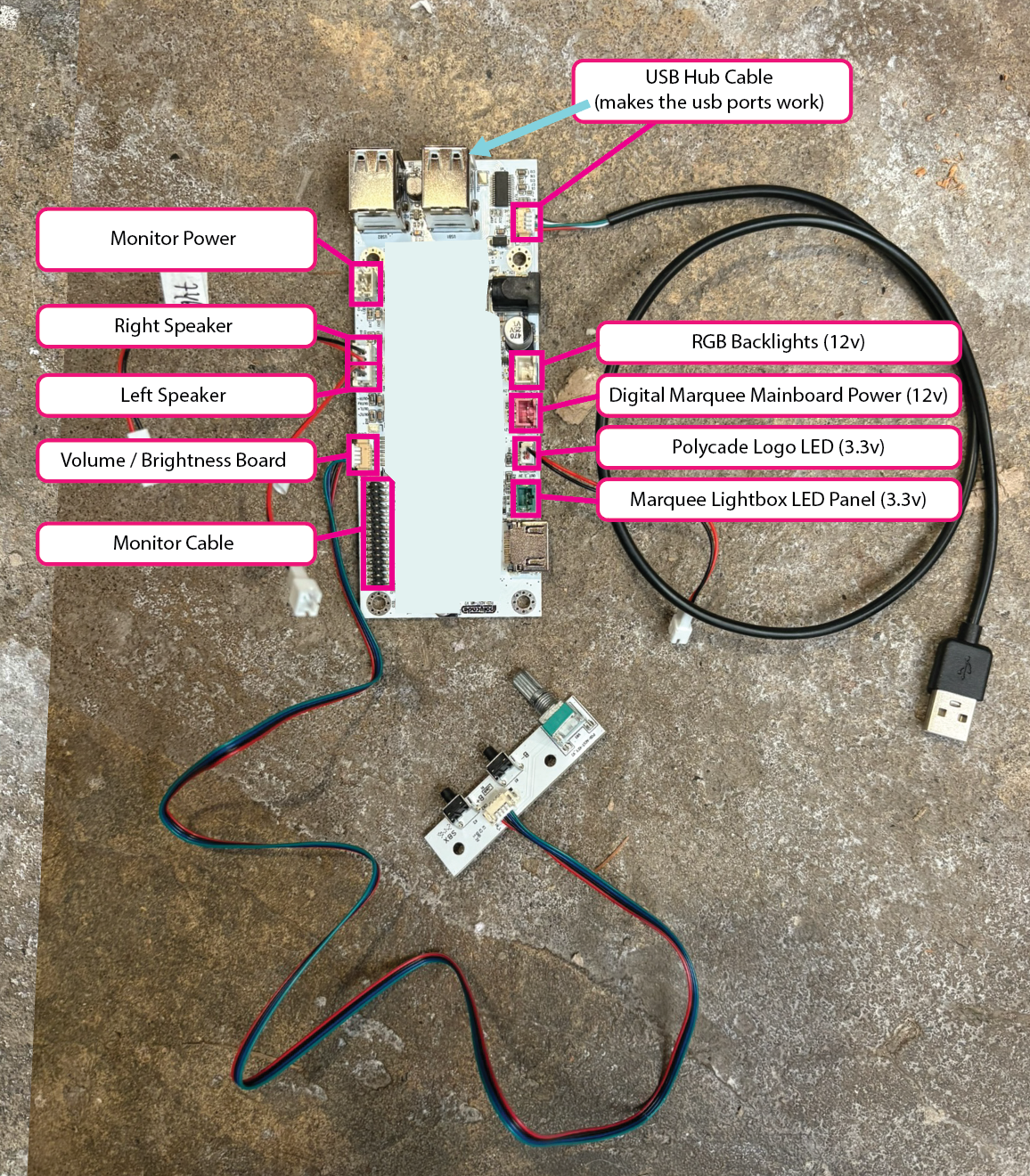

Sente Mainboard v2 Map
